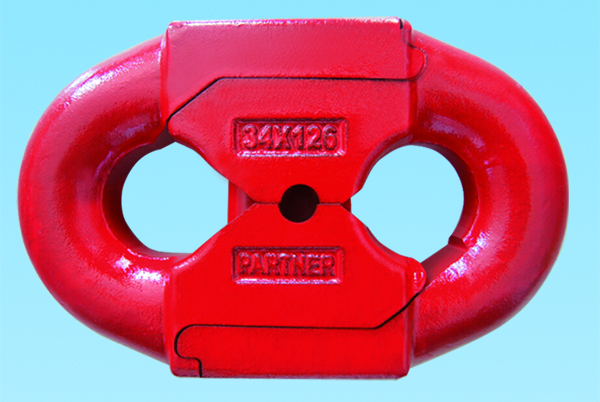

K齒型接鏈環(水平面和垂直面都能使用，優先選用水平連接)

K齒型接鏈環符合DIN22258 Part1 1983標準,高于國內MT/T  99-1997標準，在制造過程中選擇了富含Cr、Ni、Mo合金元素的高合金鋼和多重?zé)崽幚砉に嚕源_保其與配套鏈輪的配合，安全運行，K齒型接鏈環表面經過特殊防腐處理，延長了使用壽命。

K齒型接鏈環垂直安裝使用時，一定要注意裝配方向，保證上方箭頭與傳動方向一致。

K-tooth Connector (for vertical and horizontal use,horizontal link connector is preference)

The K-tooth connector comply to the standard DIN 22258 part I ,which exceed the requirements in China Standard MT/T 99-1997 .The tensile and fitigue performance is particularly impressive and has been achieved by careful selection of raw material include Cr.Ni and Mo and heat treatment during the manufacturing process .The perfect engagement with sprocket either in Horizontal or Vertical has been achived .The Surface of K-tooth connector have been treated through anti-corrosion process to expand its work life.

Please be aware of the fitting direction when assembling for vertical use, keep the top arrow direction same with the transmission direction.

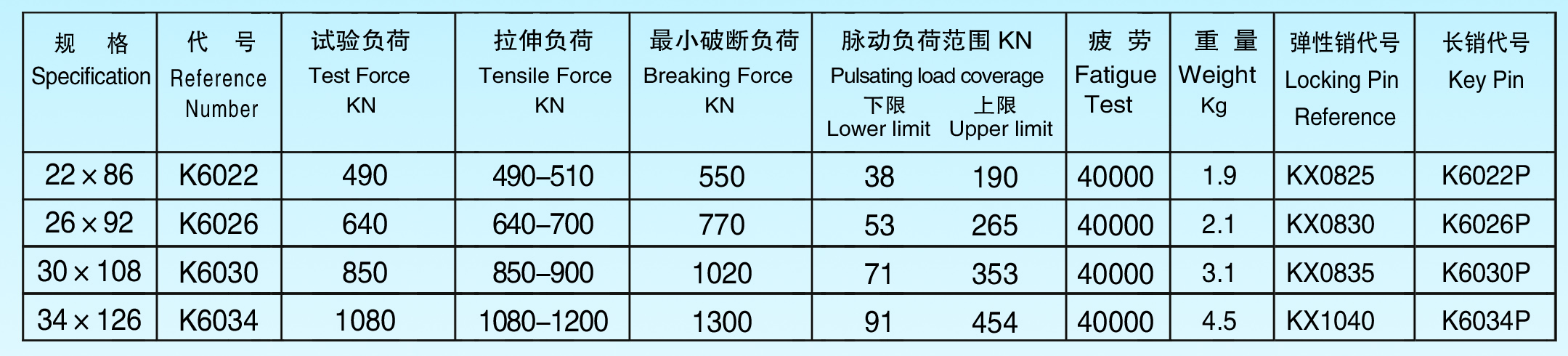

梯齒環機械性能

Mechanical properties of the T-tooth Connector

疲勞試驗最小40000次；平均應力150N/mm2;振幅±100N/mm2 ;KV沖擊試驗最小55J（典型的70J）

參考DIN22258：2003第1部分實驗方法和程序

Fatigue Test-40000 cycle min.Mean stress 150N/mm2;Amplitude ±100N/mm2 Impact KV Test -55J.min (70 Typical)

Refer to DIN22258 :2003 Part1 for verification methods and procedures.

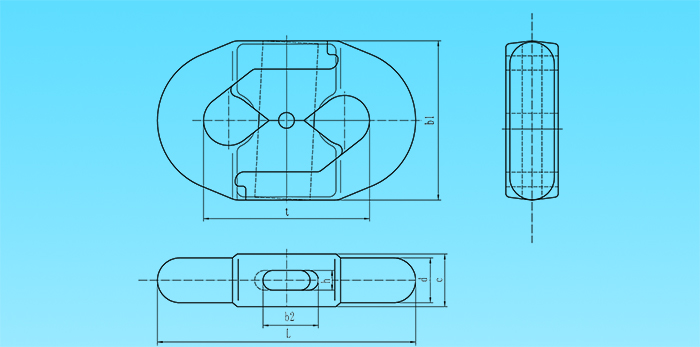

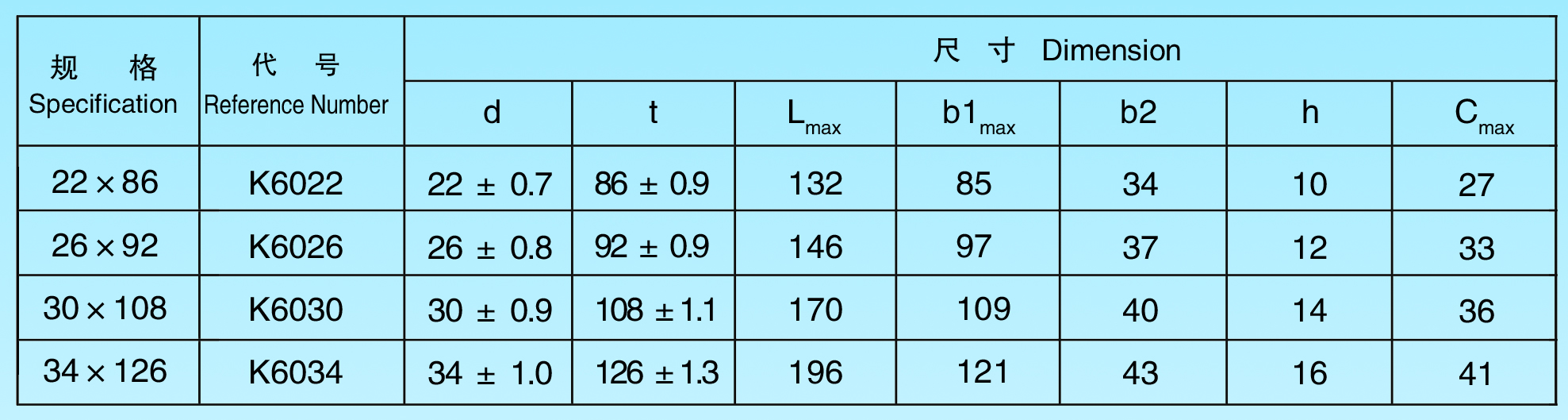

尺寸（Size）

安裝與維護

K齒型接鏈環安裝說明書提供了安裝和維護的正確方法。

*定期檢查磨損和損壞

*每三個月或完成100萬噸過煤量進行檢查（如果用于轉載機需每月檢查一次）

*不要在兩個接鏈環中插入其它部件

Assembly and Maintenance

An instruction leaflet is supplied with each K-Tooth connector which gives guidance on correct assembly and maintenance.

.Regularly check for wear or damage and free from dust.

.Fully examine every 3 months or IM tonnes conveyed whichever is the sooner(For BSL use,examine montly)

.Do not interchange components between connectors.
