矮槽邦用V鎖式接鏈環可用于連接圓環鏈和“緊湊”鏈以及F級鏈條。因?yàn)樵谥圃爝^(guò)程中選擇了富含Cr、Ni、Mo元素的高合金鋼原材料和多重?zé)崽幚砉に嚕哂蟹浅８叩睦煨阅芎推趬勖?/p>
這種接鏈環只可處置使用，其外形大小符合DIN22258 Part3 標準要求，并經精心設計，以確保與配套鏈輪的配合。由于采用較低寬度設計，在同樣大小的傳送槽中，可采用較大截面鏈環，從而提高輸送能力。
V lock for low prifile section is designed for joining mining chains of either round link or compact configuration and F Grade.The tensile and fatigue performance is particularly impressive and has been achieved by careful selection of raw materail containing Cr .Nr Mo and heat treatment during the manufacturing process.
The connectors which are for use in the vertical plane only are produced dimensionally in accordance with DIN22258 part 3 and are extremely sprocket friendly where these have been designed with this specification in mind .
Because of its low height design and big cross-section,it can improve carrying capacity when adopted in the same kind of transmission system.
尺寸和重量
Size and weight

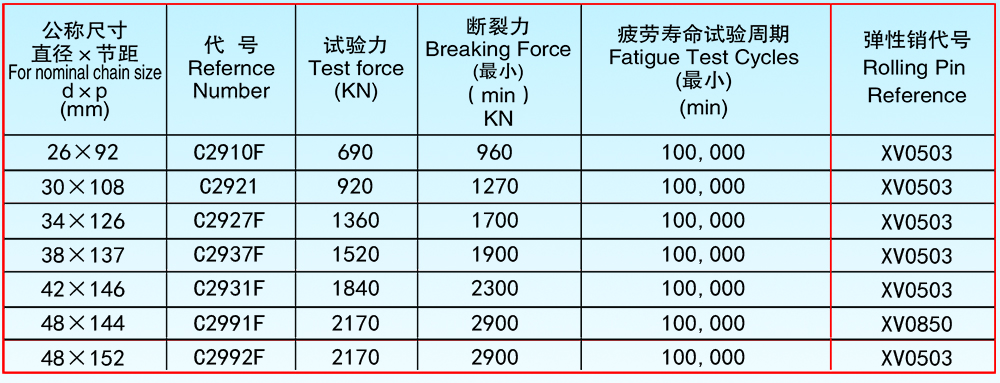

機械性能表
mechanical properties
